Campagnolo Zonda C17 Rim

The features of the Zonda™ wheel have been enhanced even further with a C17 rim that is compatible with more comfortable clincher tires. It's also 10g lighter than the previous version.

Zonda is one of Campagnolo's best-selling aluminum wheels. It's packed with technological innovations that make it a highly sophisticated solution.

A smaller hub diameter combined with the differentiated rim height (24/27mm) and the new self-locking nipples offer a front wheel that's smooth to steer and bump-resistant: racing on this model is a safe bet.

Features:

• Unrivalled: One of the best-selling wheels of all time, the Zonda is an aluminum tire boasting technologies that are far more sophisticated than any other product of its kind on the market.
• Weight and stiffness are optimised thanks to the milled rim with differentiated height
• Aerodynamic spokes and self-locking nipples guarantee performance and reliability
• The lightweight structure and hi-tech features of these wheels make them ideal for racing or grand fondo cycling.
• The robustness and reliability that set the Zonda apart make it one of the best wheels for road cycling.
• Momag™: allows the external profile of the rim to be free of holes – increases structural resistance – makes rim tape unnecessary and reduces the weight of the wheel.
• Milled Rim Differentiated Rim Height Front (24 - 27 mm) And Rear (27 - 30 mm)
• Dynamic Balance™
• Spokes Anti-Rotation System keeps the spokes in the position of maximum aerodynamic penetration.
• Exclusive Mega-G3™ Spoke Pattern: perfect balance of spoke tension on both sides of the wheel. Reduces stress, increases transversal rigidity and the transmission of power to the wheel. Mega-G3™ eliminates vibrations even with "heavy" cyclists.
• Front: 16 spoke variable profile Aero radials in stainless steel.
• Rear: 21 spoke variable profile Aero in stainless steel with doubling on the cassette side.
• Self-Locking Nipples: allow the ideal spoke tension to be maintained at length, eliminating friction on the rim. All this translates into constant high performance throughout the life of the product.

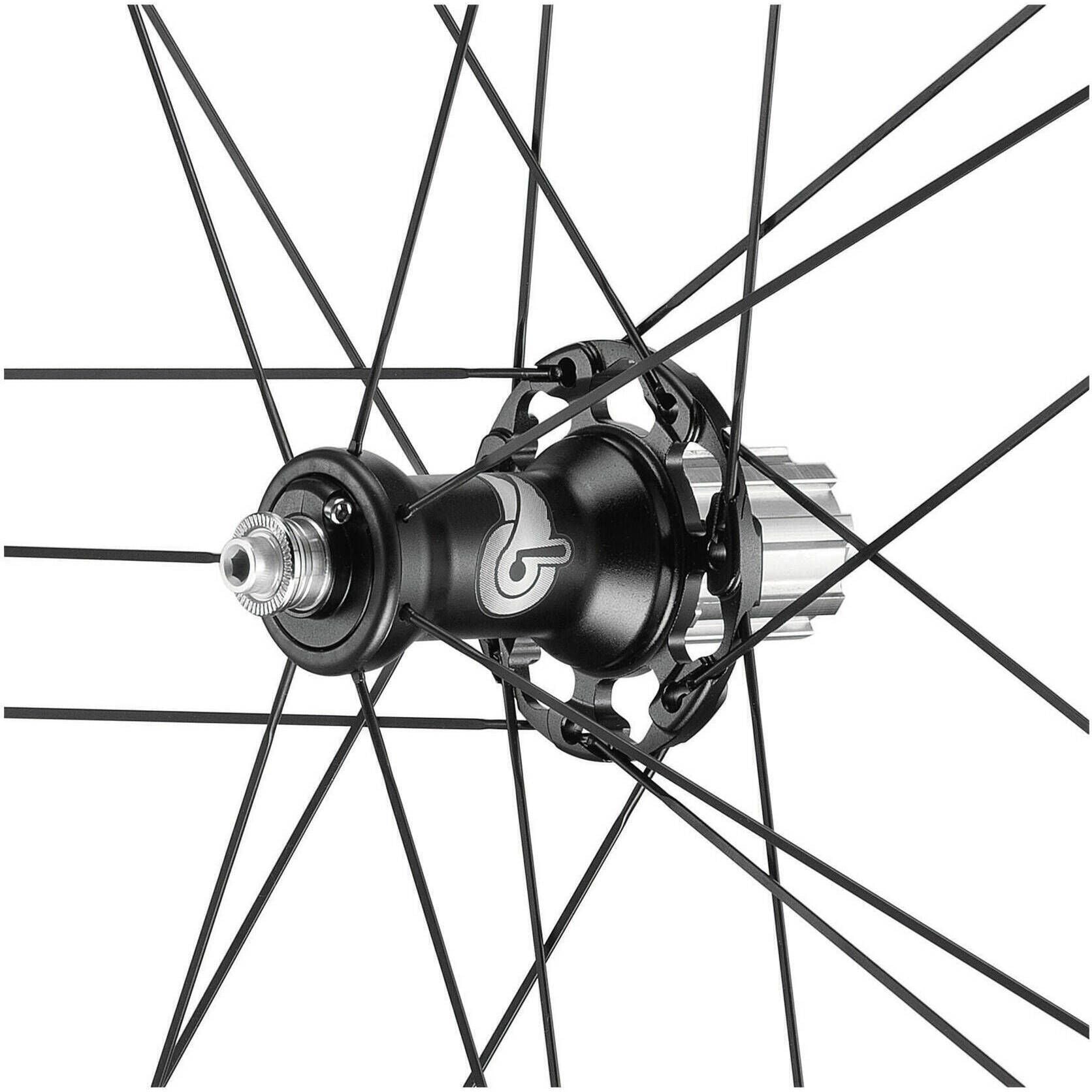

• Rear Hub With Mega-G3™ Oversized Flange: increases the torsional stiffness, increasing reactivity at each change of pace of the cyclist.
• Aluminum Hub Body: provides a high degree of lateral stiffness.
• Aluminum Axle: low weight, high stiffness.

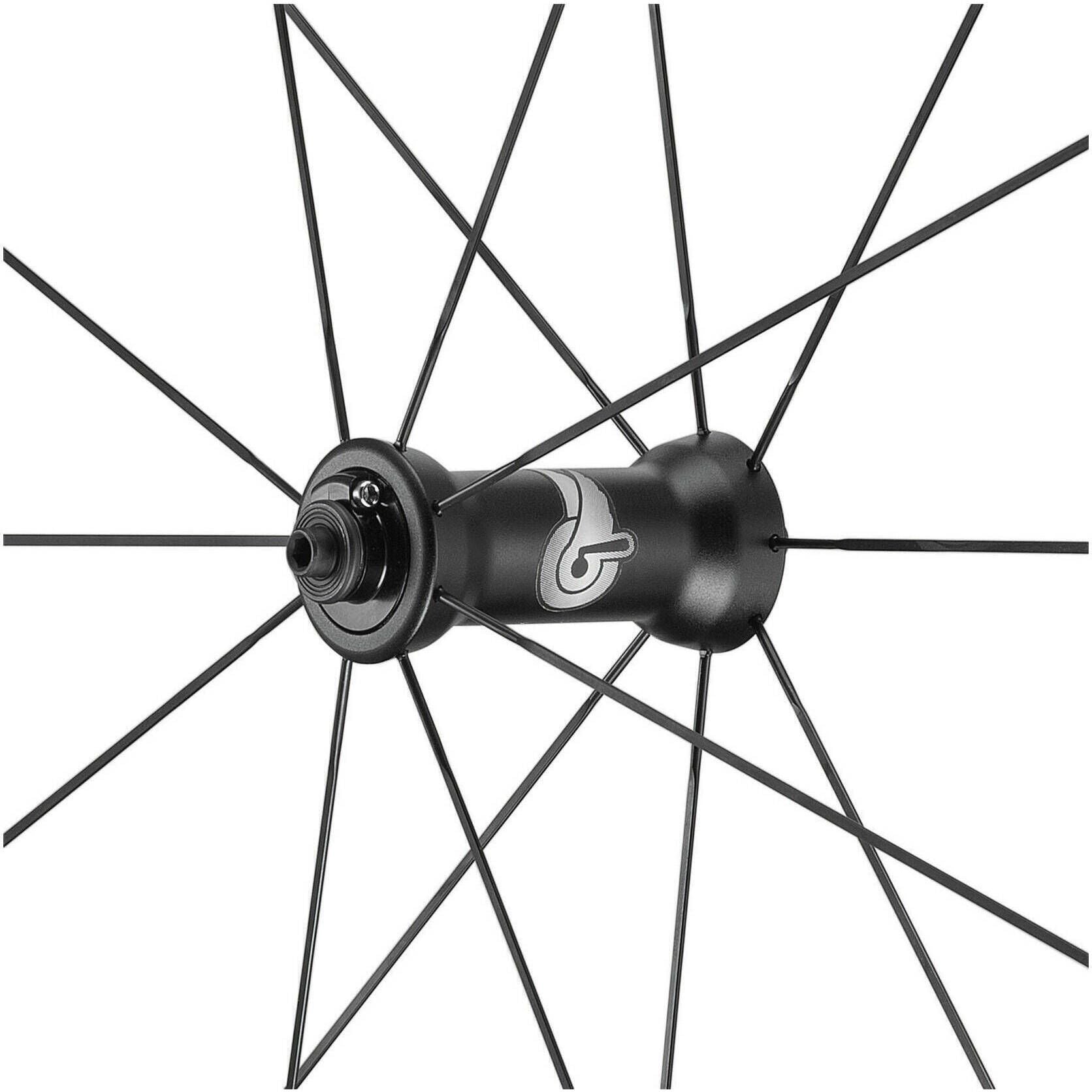

• Differentiated Hub Diameter Front And Rear: optimized for structural integrity and performance. Small front hub aids in aerodynamic efficiency.
• New Adjusting Lock Ring With Microsetting: for an accurate adjustment of the hub that prevents the creation of play.

Specifications:

• Spokes:
  • Spoke count:16 variable-section stainless-steel radial aero spokes (front) and 21 variable-section stainless-steel aero spokes (rear) with a 2:1 spoke ratio on the drive side
  • RDB
  • Steel spokes with aerodynamic profile
  • Anty-Rotation System
  • Self-locking nipples
• Versions and weights:
  • Wheel for clincher tire: 1540 g
• Compatibility:
  • Campagnolo FH Body 9/10/11/12
  • FH Body HG 9/10/11
• Hub:
  • Aluminum hub with black finish
  • Steel bearings
  • Hub edge: 100mm (front), 130mm (rear)
  • Oversize flange
  • Cup-and-cone bearing system
• Rim:
  • Profile height: 24-27/27-30 mm
  • Rim width: 22 mm
  • Rim material: Alluminum
  • Graphic colours: Bright Label
• Tires:
  • Wheel for clincher tire
• Assembly:
  • The Zonda™ wheel is entirely hand-assembled by a specialised Campagnolo® technician and is checked in every tiny detail with electronic instrumentation. This ensures maximum performance and reliability for all Campagnolo® wheels.
• Comes with:
  • User manual
  • Quick Release wheel locks
